Space Shuttle Data Processing Schematics Index; Use this Manual to find Schematics on The Space Shuttles's Data Processing Systems

Data Processing

Data Processing System Interfacing Hard

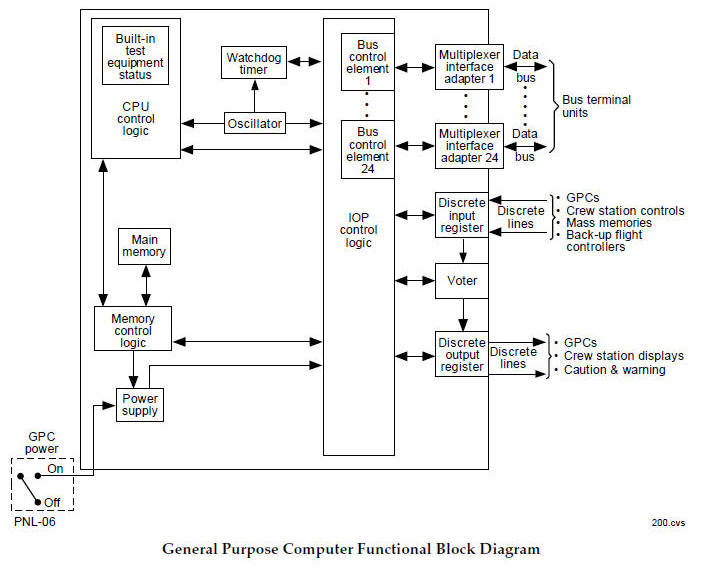

General Purpose Computer Functional Block Diagram

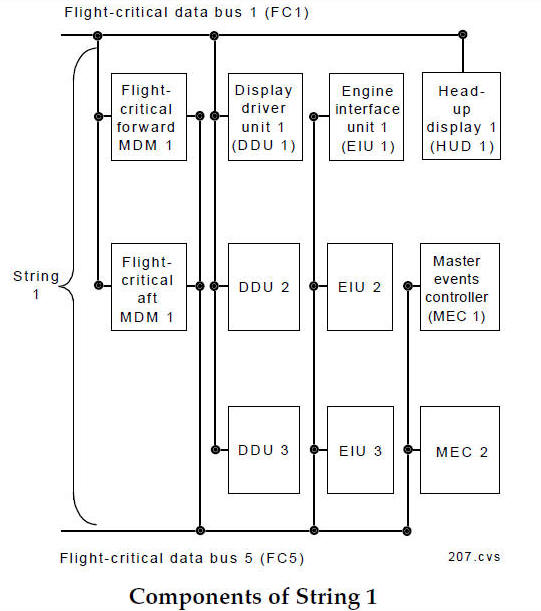

Components of String 1

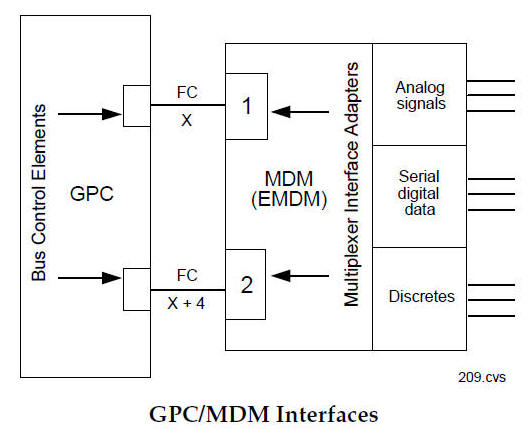

GPC/MDM Interfaces

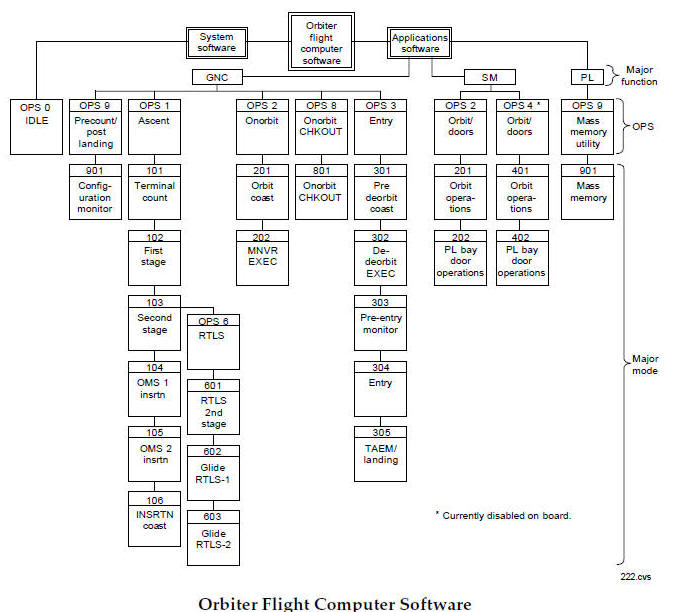

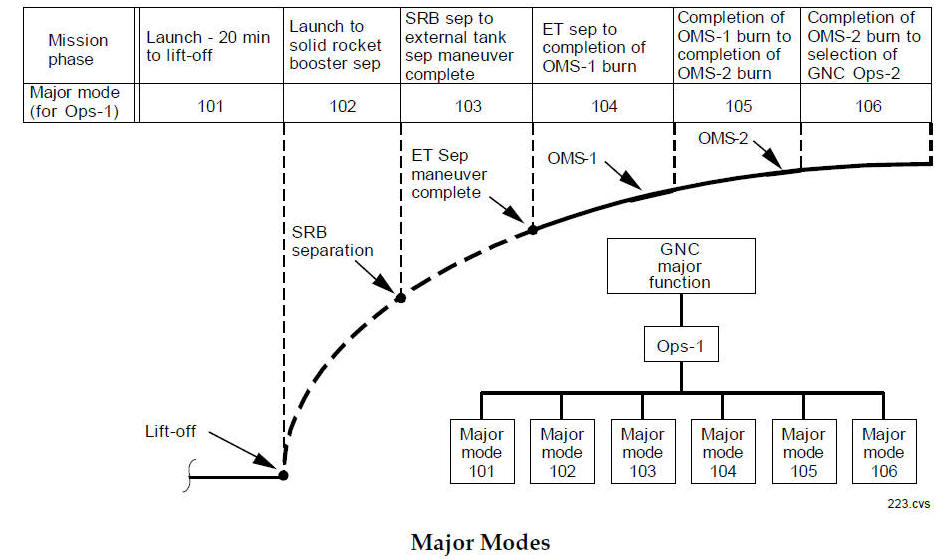

Orbiter Flight Computer Software

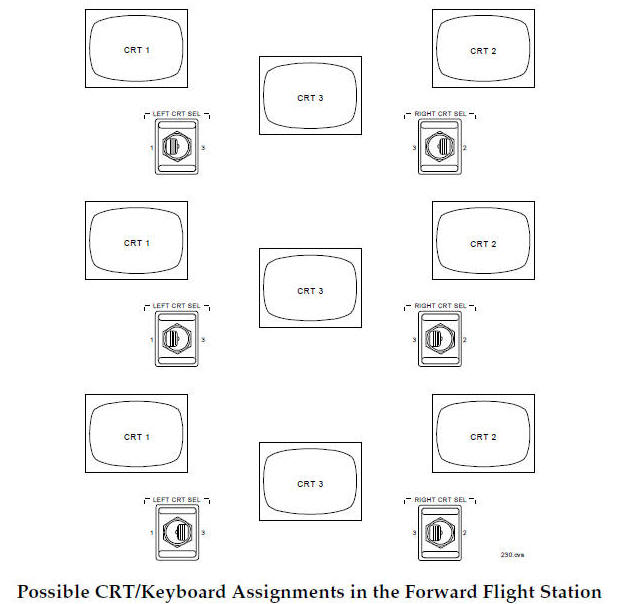

Possible CRT/Keyboard Assignments in the Forward Flight Station

Data Processing System Interfacing Hard

General Purpose Computer Functional Block Diagram

Components of String 1

GPC/MDM Interfaces

Orbiter Flight Computer Software

Possible CRT/Keyboard Assignments in the Forward Flight Station
